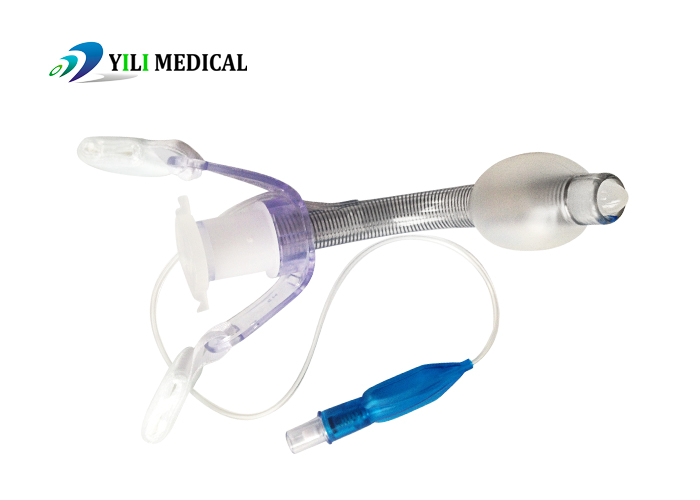

Disposable Cuffed Reinforced Tracheostomy Tube
Brand Name: EasyThru or OEM
Certification: CE ISO13485
Model Number: 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm, 7.5mm, 8.0mm, 8.5mm, 9.0mm
Material: Non Toxic PVC Medical Grade
Type: Armorced Trachostomy Tube With Cuff
Sterilization: E.O. Gas, Single Use Only
Disposable Reinforced Tracheostomy Tube Cuffed
Reinforced medical tracheostomy tube has metal spring inside wall to support catheter avoid flattening by pressure, maintain airway for patients, safe.

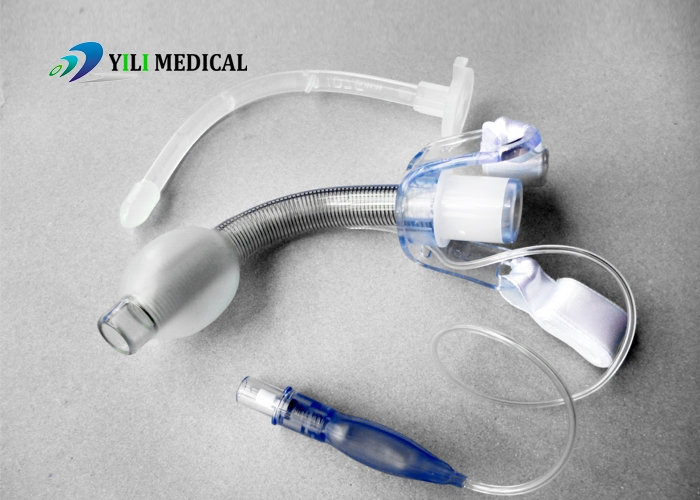

A simple tracheostomy tube consists of outer cannula, a obturator , balloon, connector and tie band. Obturator is used guide outer cannula in right position during inserting. Inflatable balloon use to remains placement. Fasten the outer part of tracheal incision by tie band.
Sizes: 5.0mm-9.0mm
Type: Pipe,Drainage Tubes & Containers
Properties: Medical Polymer Materials & Products
Place of Origin: Shanghai,China (Mainland)
Brand Name: EasyThru or OEM
Features:
1. Made of non-toxic, medical-grade PVC
2. Full-length radio opaque line
Tracheostomy Tube Cuffed
Description:
1. Designed to establish and mantain an airway in case of an emgency
2. Cuff ensures effective sealing and atraumatic intubation and extubation
3. Rounded and smooth tip of the obturator minimizes tissue injury during intubation
4. Blister package or peelable pouch as per request
5. Sterile by EO, single use
6. Available with CE and ISO certificates
| Size | Tube I.D | Tube O.D | Tube Length A Part ±5mm | Length B Part±5mm | (A+B+C) | Balloon I.D.(after inflation)mm±15%) |
| overall length | ||||||
| mm | ||||||
| 3 | 3 | 4.2 | 28 | 10 | 55 | 12 |
| 3.5 | 3.5 | 4.9 | 28 | 10 | 55 | 12 |
| 4 | 4 | 5.5 | 28 | 10 | 55 | 14 |
| 4.5 | 4.5 | 6.2 | 28 | 10 | 55 | 14 |
| 5 | 5 | 6.9 | 30 | 10 | 65 | 16 |
| 5.5 | 5.5 | 7.5 | 30 | 10 | 70 | 16 |
| 6 | 6 | 8.2 | 30 | 10 | 70 | 18 |
| 6.5 | 6.5 | 8.7 | 31 | 12 | 80 | 18 |
| 7 | 7 | 9.3 | 31 | 12 | 86 | 20 |
| 7.5 | 7.5 | 10 | 36 | 16 | 88 | 20 |
| 8 | 8 | 10.7 | 36 | 16 | 92 | 22 |
| 8.5 | 8.5 | 11.3 | 36 | 16 | 95 | 22 |
| 9 | 9 | 12 | 36 | 16 | 98 | 22 |
| 9.5 | 9.5 | 12.7 | 36 | 16 | 98 | 22 |
| 10 | 10 | 13.3 | 36 | 16 | 98 | 22 |
| Tolerance requirement:I.D≤ 6.0 +0.15mm O.D≤ 8.2 +0.15mm | ||||||
| I.D≥ 6.5 +0.20mm O.D≥ 8.7 +0.20mm | ||||||
